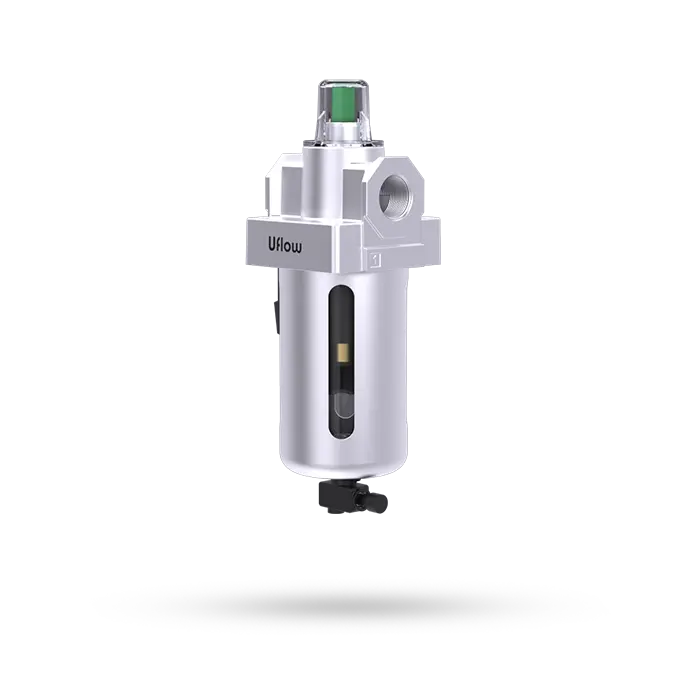

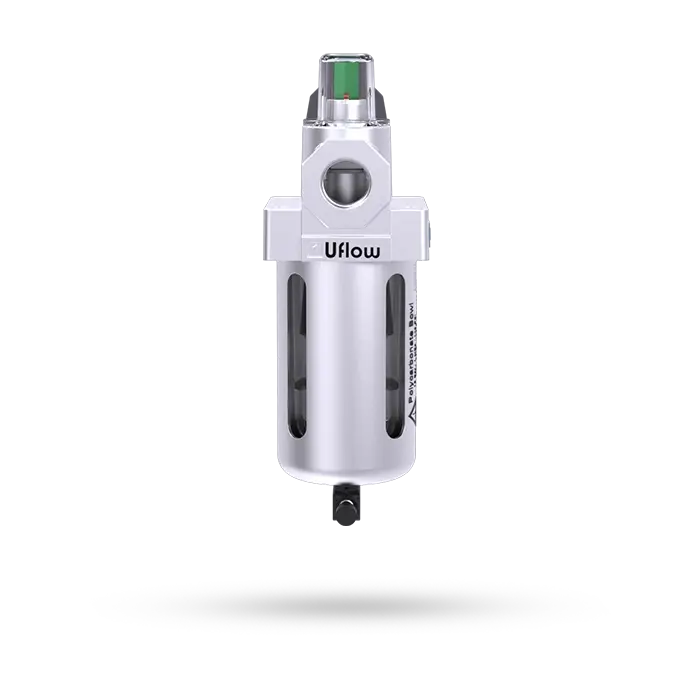

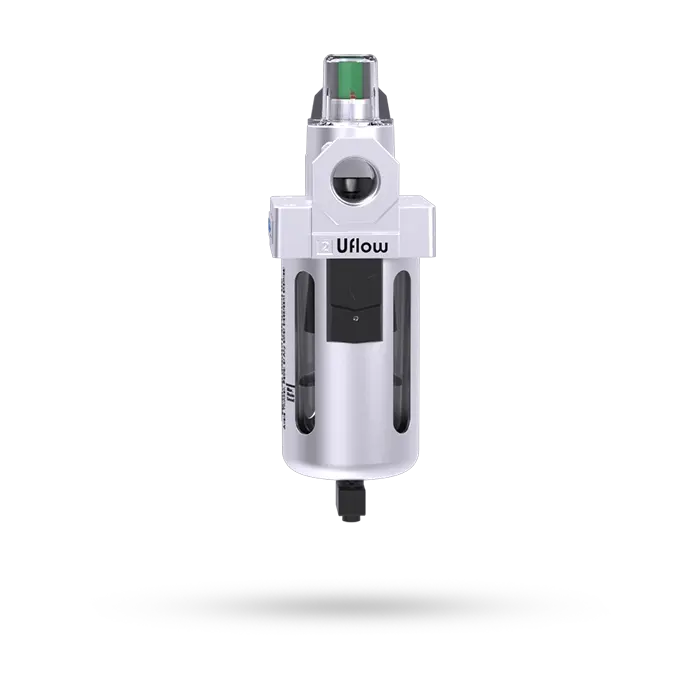

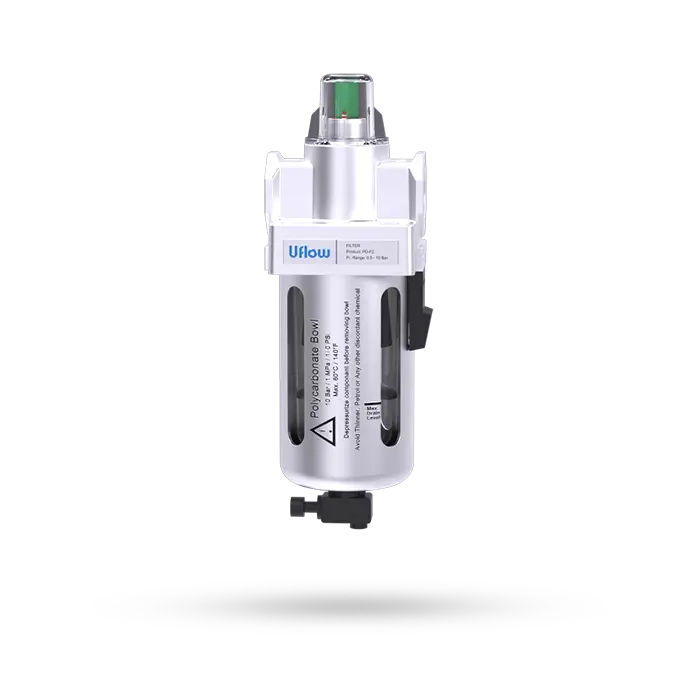

Model No
| F1A106BV0 | F1A706BV0 | F1A206BV0 | F1A306BV0 | F1A406BV0 |
Media
Compressed air
Port Size
| G¼ | G³⁄₈ | G½ | G¾ | G1 |
Flow Rate LPM
| 800 | 2250 | 3500 | 5000 | 6500 |
maximum supply pressure
10 Bar
Ambient Temperature
Manual Drain :- -10°C to +50°C ,Semi Auto Drain : +5°C to +50°C
Media Temperature
+5°C to +50°C
Filtration
1, 5, 25, 40 (Standard), 50, 100
Bowl Capacity
| 9 | 32 | 44 | 165 | 165 |
Bowl Material
Polycarbonate
installation
Vertical (as in the picture)
Materials of construction
Aluminium, Bronze, Steel, Acetal, Polycarbonate, SS, Nitrile
optional accessories
Clamp, Modular mounting kit
Note
Supply Pressure 6 bar, pressure drop Δp = 0.5bar (For Standard Models)
- Conforms to ISO 5782 -1
- Suitable for modular mounting
- Press type Manual drain for easy operation
- Bronze filtering element
- Separator and shield for efficient moisture separation
| Model No. | Diagram No. | W | A | B | E | F | J | K | L | T | U |
|---|---|---|---|---|---|---|---|---|---|---|---|
| F1A106BV0 | 1.1 | ¼" | 40 | 128 | 11 | 30 | 28 | 15 | 5.5 | 2 | M5 |
| F1A706BV0 | 1.1 | ³⁄₈” | 55 | 140 | 14 | 40 | 40 | 25 | 6.5 | 2 | M5 |
| F1A106BV0 | 1.1 | ½” | 70 | 170 | 18 | 50 | 55 | 25 | 8.5 | 2 | M5 |
| F1A306BV0 | 1.1 | ¾” | 90 | 260 | 24 | 70 | 66 | 35 | 11 | 5 | M5 |
| F1A406BV0 | 1.1 | 1” | 90 | 260 | 24 | 70 | 66 | 35 | 11 | 5 | M5 |
- Note the direction of flow before installation and connect piping accordingly.
- Flush pipings for dirt, dust, rust and other foreign particles.
- Install in clean atmosphere.
- Nipples of taper threads to be used with tape.Ensure teflon tape does not enter the unit during tightening Nipples of straight threads to be used with sealing washer
- Polycarbonate bowls may get damaged and possibly fail if exposed to synthetic oils, thinner, solvents, trichloroethylene, kerosene or other aromatic hydrocarbons.
