Type
3 Way
Design

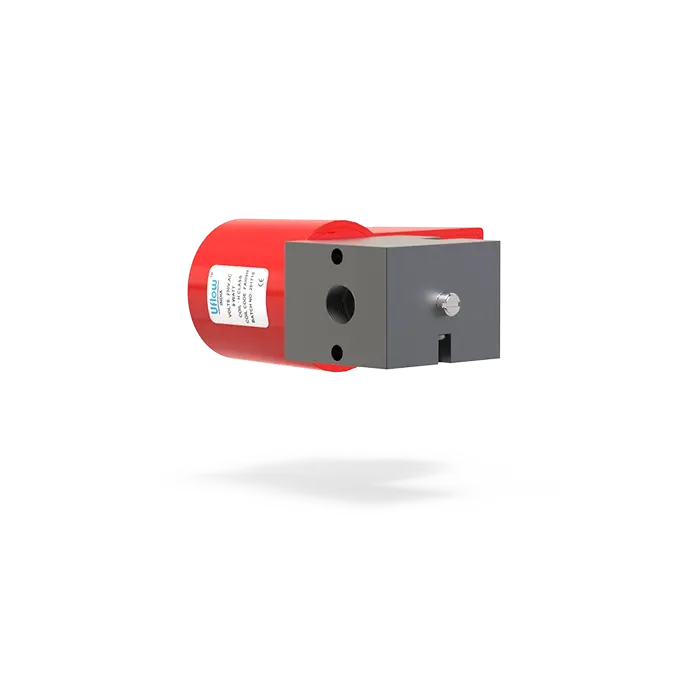

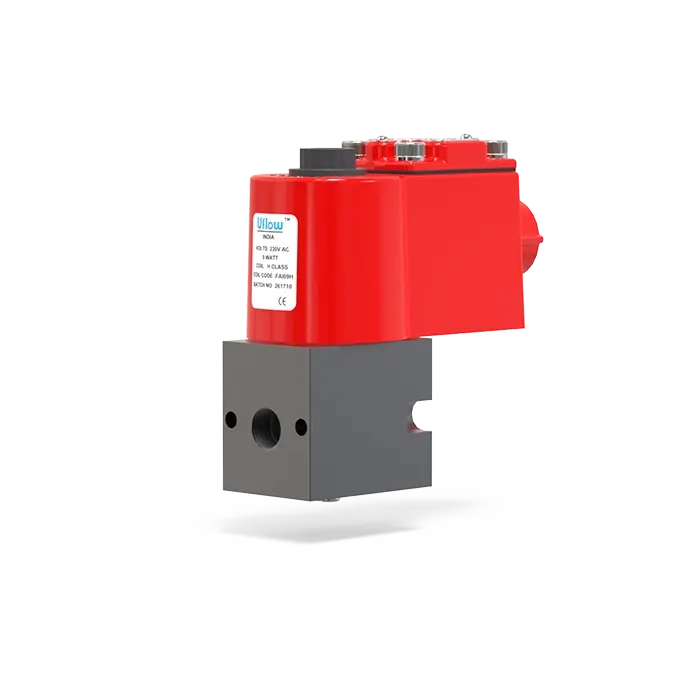

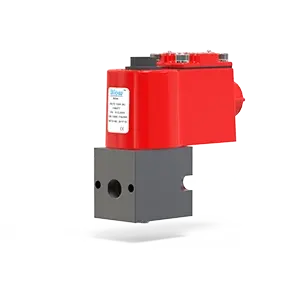

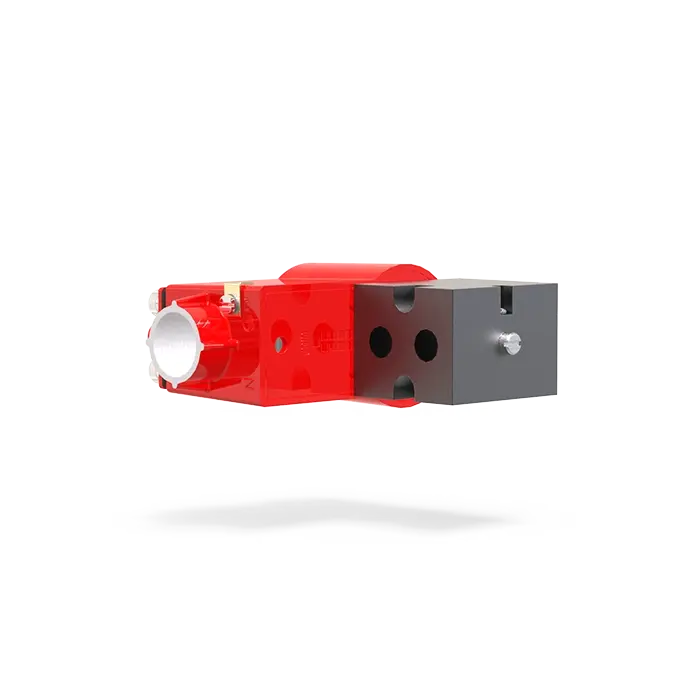

3 Way Direct Acting Poppet Type
Port Size
In / Out / Exhaust - ¼
Media
Compressed Air (Filtered & Lubricated)
Working Pressure Range
0-10 Bar
Orifice
7mm,10mm
Ambient/Medium Temperature
5°C - 60°C
Materials of Construction
Aluminium, Nitrile, Brass, Polymer
Flow Factor
| 14 kv (LPM of Water @ 1 bar ΔP) | 30 kv (LPM of Water @ 1 bar ΔP) |
Operating Voltage & Power Consumption
| 24V AC | 110V AC | 230V AC | 24V DC |
| 9W | 9W | 9W | 11W |
Coil Features
High Reliability Unaffected by Voltage Surges. Easy coil changes coil lockable in 4X90 position or freely movable in between as required.
Coil Housing
Epoxy square coil, Metallic round enclosure, IP-67 Flameproof enclosure, IP-68 Weatherproof enclosure.
- Fast response time 1000 cycles/min.
- Manual Override.
- 10 Million cycle tested
- Lubrication is not essential.
| Model No. | Coil Type | Function | Symbol |
|---|---|---|---|
| TAN104BUGT050V0 | AC | Single Solenoid Spring Return | |
| TAN104BUHT050V0 | DC |
